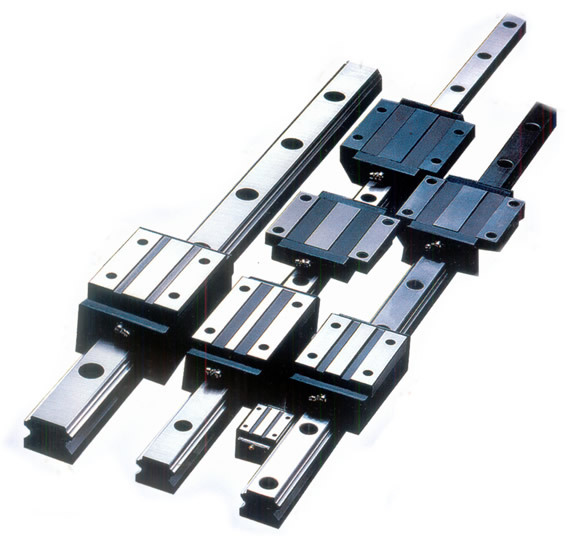

導軌滑塊又稱線軌、滑軌、直線導軌、直線滑軌，用于直線往復運動，能承受一定的扭矩，能在高載荷下實現高精度的直線運動，今天導軌絲杠廠家來給大家分享一下導軌滑塊的特點和功能作用，希望對你有幫助。

The guide rail slider, also known as a line rail, slide rail, linear guide rail, or linear slide rail, is used for linear reciprocating motion. It can withstand a certain amount of torque and achieve high-precision linear motion under high loads. Today, the guide rail screw manufacturer will share with you the characteristics and functional functions of the guide rail slider, hoping to be helpful to you.

導軌滑塊特點：

Characteristics of guide rail slider:

1.導軌滑塊擁有高負荷、高扭矩功能，采用雙排滾珠循環設計，滾珠軌道采用歌德結構，其接觸角為45度，從而達到四個方向載荷相等的效果。

1. The guide rail slider has high load and torque functions, and adopts a double row ball circulation design. The ball track adopts a Goethe structure with a contact angle of 45 degrees, achieving equal load in all four directions.

2.嵌入式設計：導軌滑塊剛體與框架、端蓋、密封件的結合采用嵌入式設計，無需螺絲固定，節省設計空間。

2. Embedded design: The combination of the rigid body of the guide rail slider with the frame, end cover, and sealing elements adopts an embedded design, without the need for screw fixation, saving design space.

3.潤滑簡單：導軌滑塊兩端設計有密封的潤滑油注入孔，可以通過鋼球的循環將潤滑油帶到表面，達到潤滑效果，防塵設計良好，薄底封和端封形成全密封防塵設計，大大減少了污染的進入。

3. Simple lubrication: The guide rail slider is designed with sealed lubricating oil injection holes at both ends, which can bring lubricating oil to the surface through the circulation of steel balls to achieve lubrication effect. The dust prevention design is good, and the thin bottom seal and end seal form a fully sealed dust prevention design, greatly reducing the entry of pollution.

4.它的使用壽命長，導軌滑塊是用不銹鋼硬化熱處理材料，大大提高了使用壽命。

4. Its service life is long, and the guide rail slider is made of stainless steel hardened heat treated material, greatly improving its service life.

導軌滑塊的功能作用：

The functional role of the guide rail slider:

1.工作精度高：由于直線導軌在運動時摩擦非常小，只需很小的功率就能使機器運動，顯著降低了機器的功耗，摩擦產生的熱量非常小，它是一個適合高速、頻繁啟動和換向的運動部件。

1. High working accuracy: Due to the very small friction of the linear guide rail during movement, it only requires a small amount of power to make the machine move, significantly reducing the power consumption of the machine. The heat generated by friction is very small, making it a suitable moving component for high-speed, frequent starting and reversing.

2.潤滑結構簡單：直線導軌在滑塊上配有注油杯，可以直接注入油脂，也可以連接供油管由自動供油機潤滑，使其磨損減少到小，機器可以長期保持良好的工作狀態。

2. Simple lubrication structure: The linear guide rail is equipped with an oil cup on the slider, which can directly inject grease or connect the oil supply pipe to be lubricated by an automatic oil supply machine, reducing its wear to a minimum. The machine can maintain good working conditions for a long time.

3.防塵密封能力強：直線導軌防塵性能好。滑塊兩端有密封端蓋，底部可以用底片密封。同時，滑軌的固定螺孔配有防塵螺孔蓋，防止灰塵堆積，保證了產品的壽命和性能。

3. Strong dustproof sealing ability: The linear guide rail has good dustproof performance. The slider has sealed end covers at both ends, and the bottom can be sealed with a negative film. At the same time, the fixed screw holes of the slide rail are equipped with dustproof screw hole covers to prevent dust accumulation and ensure the product's lifespan and performance.

4.安裝更換方便：由于采用精密加工技術，滑軌直線度高，滑軌安裝螺孔誤差小，安裝方便，導軌滑塊是可以互換的，可以分別更換滑塊或滑塊甚直線導軌，使機器重新達到高精度。

4. Convenient installation and replacement: Due to the use of precision machining technology, the straightness of the slide rail is high, and the screw hole error during the installation of the slide rail is small, making it easy to install. The guide rail slider can be interchanged, and the slider or even the linear guide rail can be replaced separately, so that the machine can achieve high accuracy again.

導軌滑塊具有有限行程和耐高溫、高負荷、高扭矩功能，無論是滑軌、滑座的鋼體還是滾珠都是經過硬化熱處理的不銹鋼制成，適用于低沖程、低摩擦、高速運動、真空操作、耐腐蝕、耐酸等。您對此有需求可以隨時聯系我們http://www.zhzdh888.com做咨詢！

The guide rail slider has limited travel, high temperature resistance, high load, and high torque functions. Whether it is the steel body of the slide rail, slide seat, or the ball, it is made of hardened heat treated stainless steel, suitable for low stroke, low friction, high-speed movement, vacuum operation, corrosion resistance, acid resistance, etc. If you have any needs, please feel free to contact us at any time http://www.zhzdh888.com Consulting!
